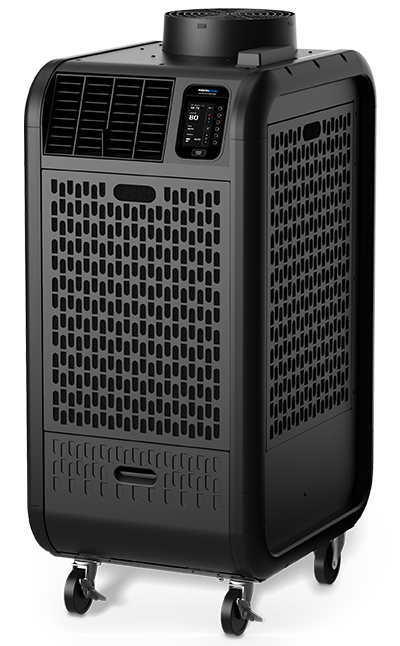

Climate Pro K24

Two tons of worry-free, on-the-spot cooling.

With a space-saving footprint of slightly more than 4 sq. ft., the Climate Pro K24 provides up to 24,000 Btu/h of cooling relief—helping keep employees productive and preventing electronics from overheating.

  • Modest power usage. Runs on 208/230V 20 amp circuit and consumes 2.9 kW.
  • Cooling support effective in conditions from 65° to 95°F.

24,000 Btu/h

Cooling Capacity

1 Phase, 208/230V

Voltage

Climate Pro K24 - MovinCool

Find your local MovinCool dealer

Find a Dealer

Climate Pro K24 Features

Bringing you added value

The Climate Pro K24 features advances that distinguish the entire Climate Pro Series—added assurances of safety and ease of operation.

See the features that distinguish the entire Climate Pro Series.

    Advanced features include:

    • Modest power usage. Runs on 208/230V 20 amp circuit and consumes 2.9 kW.

    • Cooling support effective in conditions from 65° to 95°F.

    y

    Quiet, reliable operation.

    Moderately quiet. At highest speed with condenser duct, sound level 66 dB(A) — similar to sound levels for conversation.


    Electronic Features

    Control PanelProgrammable

    Cooling Capacity

    Rating Conditions: 95°F @ 60% RH @ 208/230V24,000 Btu/h

    Electrical Characteristics

    Voltage Requirement (60Hz)1 Phase, 208/230 V
    Total Power Consumption2.9 kW*
    Current Consumption12.5 amps*
    Recommended Fuse Size20 amps
    NEMA Plug Configuration6-20
    Min. - Max. Voltage198 - 253 V

    Fans

    Motor Output 0.56 kW*

    Evaporator

    Fan TypeCentrifugal
    Max Air Flow - High/Mid/Low650/600/530 CFM*
    Max. External Static Pressure0.5 IWG

    Condenser

    Fan TypeCentrifugal
    Max Air Flow High/Mid/Low870/760/740 CFM*
    Max. External Static Pressure0.16 IWG

    Compressor

    TypeHermetic Rotary
    Output @ 230V1.5 kW

    Refrigerant

    TypeR-410A

    Dimensions

    W x D x H22 x 27 x 51 in

    Weight

    Net / Shipping 205 / 282 lb

    Power Cord

    Gauge12 AWG (3-core)
    Length6 ft

    Condensate Tank

    Capacity5 gal

    Operating Conditions

    Min. - Max. @ 50% RH65° - 95°F

    Max. Duct Length

    Per Cold Duct Hose50 ft
    Hot Duct Hose45 ft

    Max. Sound Level

    With Condenser Duct - High/Mid/Low66/64/61 dB(A)
    Without Condenser Duct - High/Mid/Low68/66/63 dB(A)

    *Specification information shown with 230 V.

    Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit.


    Images/Videos
    Callout No.
    Part No.
    Item
    Description
    1
    481170-0450
    Supply Air Flange Kit, 5-in dia.
    5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts.
    1B
    481170-0480
    Supply Air Flange Kit, 5-in dia., Quick Connect type
    5-in diameter black plastic flange with mounting screws. Use with Quick Connect Nozzle Kit.
    2
    484209-0480
    Nozzle Kit, 5-in dia.
    5-in diameter plastic nozzle that extends up to 2 feet in length. Quick connect type. Includes trim ring.
    4
    LA481744-0420
    Self-Supported Duct, 5-in dia.
    5-in diameter, gray plastic duct that extends from 6.5 to 10 feet in length.
    5
    481851-0200
    Trim Ring, 5-in dia.
    5-in diameter black plastic ring mounts as end caps for extension duct.
    6
    481769-0280
    Supply Air Nozzle Adapter Kit, 5-in dia.
    Adapter converts airflow from louvers to nozzles or air ducts.
    8
    LA481744-0410
    Self-Supported Duct, 12-in dia.
    12-in diameter plastic duct that extends 6.5 to 10 feet in length
    8A
    LAY45771-0060
    Flexible Air Duct, 12-in dia. (not shown)
    12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp.
    9
    LA146373-8280
    Celling Tile Kit, 12-in hole, plastic
    24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct.
    9A
    484490-1030
    Ceiling Tile, 12-in hole, metal
    24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit
    10
    484350-1440
    Outdoor Heat Exchanger Plenum
    Black plastic plenum for return air to condenser. Hinged for filter cleaning.
    11
    484789-0220
    Condensate Pump Kit, 230V
    230V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 17 feet
    12
    484350-1200
    Indoor Heat Exchanger Plenum
    Black plastic plenum for return air to evaporator.
    15
    LAY84420-0690
    Storage Cover
    Durable black nylon oxford unit storage cover. Dimensions: 22 x 28-1/4 x 44-1/2.

    Accessory Applications

    Auto Condensate Removal

    Why bother with emptying the drain tank when you can install a condensate pump to remove the water automatically? This pump has a 17-ft lift capacity to reach virtually any remote drain.

    #
    Accessory
    Climate Pro K12 / K18
    Climate Pro K24
    11
    Condensate Pump Kit
    484789-0210
    484789-0220

    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Outdoor Heat Exchanger Exhaust Air Removal

    MovinCool makes removing exhaust easy. Replace the existing ceiling tile with the MovinCool ceiling tile accessory. Place the self-supported or flexible duct on top of the unit and insert it into the ceiling tile.

    #
    Accessory
    Climate Pro K12 / K18 / K24
    8
    Self-Supported Duct, 12-in dia. (a)
    LA481744-0410
    8A
    Flexible Air Duct (not shown) (b)
    LAY45771-0060
    9
    Ceiling Tile, plastic (c)
    LA146373-8280
    9A
    Ceiling Tile, metal (not shown) (d)
    484490-1030

    REQUIRED ACCESSORIES: (a) 9, (b) 9A, (c) 8, (d) 8A.
    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Outdoor Heat Exchanger Air Intake

    When balanced airflow is required, attach the outdoor heat exchanger plenum with a duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative air pressure.

    #
    Accessory
    Climate Pro K12 / K18
    Climate Pro K24
    8
    Self-Supported Duct, 12-in dia. (e)
    LA481744-0410
    LA481744-0410
    8A
    Flexible Air Duct (not shown) (f)
    LAY45771-0060
    LAY45771-0060
    9
    Ceiling Tile, plastic (g)
    LA146373-8280
    LA146373-8280
    9A
    Ceiling Tile, metal (not shown) (h)
    484490-1030
    484490-1030
    10
    Outdoor Heat Exchanger Plenum (i)
    484350-1160
    484350-1170

    REQUIRED ACCESSORIES: (e) 9 and 10, (f) 9A and 10, (g) 8 and 10, (h) 8A and 10, (i) (8 and 9) or (8A and 9A).
    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Spot or Remote Cooling

    To use the Climate Pro® K Series models to spot cool specific areas, use the nozzle adapter in place of the standard louvers. Attach self-supported or flexible air ducts to the adapter to cool remote hot spots. Trim rings give a finished look and keep the ducts from unraveling. To improve efficiency, use the outdoor heat exchanger plenum to recirculate cool air.

    #
    Accessory
    Climate Pro K12 / K18
    Climate Pro K24
    1
    Supply Air Flange Kit (j)
    481170-0450
    481170-0450
    1B
    Quick Connect Supply Air Flange Kit (k)
    481170-0480
    481170-0480
    2
    Quick Connect Supply Air Nozzle Kit (l)
    484209-0480
    484209-0480
    4
    Self-Supported Duct, 5-in dia. (m)
    LA481744-0420
    LA481744-0420
    5
    Trim Ring (n)
    481851-0200
    481851-0200
    6
    Supply Air Nozzle Adapter Kit (o)
    481769-0280
    481769-0280
    12
    Indoor Heat Exchanger Plenum (p)
    484350-1190
    484350-1200

    REQUIRED ACCESSORIES: (j) 4, 5 and 6, (k) 2 and 6, (l) 1B and 6, (m) 1, 5 and 6, (n) 4, (o) (1B and 2) or (1, 4 and 5), (p) 8 or 8A.
    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Unit Storage

    This durable unit cover is perfect for storage and transportation on an open truck. Made of black nylon oxford fabric, this cover is waterproof and mildew- and UV-treated for lasting service.



    #
    Accessory
    Climate Pro K12 / K18
    Climate Pro K24
    15
    Storage Cover
    LA484420-0840
    LAY84420-0690

    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
