Climate Pro K36
Three tons of targeted spot cooling.
Taking less than 12 sq. ft. of floor space, the Climate Pro K36 provides 36,000 Btu/h of supplemental cooling for effective temperature control. Keep your employees cool and productive — and keep your computers and telecom equipment from overheating.
- Moderate power usage. Runs on 208/230V 30 amp circuit and consumes 4.3 kW.
- Cooling support effective in conditions from 65° to 95°F.
- Dual condensate tanks — fewer service interruptions for emptying.
36,000 Btu/h
Cooling Capacity
1 Phase, 208/230V
Voltage
Find your local MovinCool dealer
Climate Pro K36 Features
Features that equate to added value
The Climate Pro K36 brings advances that distinguish the entire Climate Pro Series—providing the utmost in safety and ease of operation.
See the features that distinguish the entire Climate Pro Series.
Advanced features include:
-
Programmable electronics for automatic operation after hours and weekends.
-
Wireless connectivity-ready for remote monitoring and e-notifications.
Moderately quiet
At the highest speed with condenser duct, sound level 68 dB(A).
Climate Pro K36 Specifications
Electronic Features |
|
| Control Panel | Programmable |
Cooling Capacity |
|
| Rating Conditions: 95°F @ 60% RH | 36,000 Btu/h |
Electrical Characteristics |
|
| Voltage Requirement | 1 Phase, 208/230 V |
| Total Power Consumption | 4.3 kW* |
| Current Consumption | 19.9 amps* |
| Recommended Fuse Size | 30 amps |
| NEMA Plug Configuration | 6-30P |
| Min. - Max. Voltage | 198 - 253 V |
Fans |
|
| Motor Output @ 230V | 0.23 kW Evaporator 0.37 kW Condenser |
Evaporator |
|
| Fan Type | Centrifugal |
| Max. Air Flow - High/Mid/Low | 920/880/840 CFM |
| Max External Static Pressure | 0.6 IWG |
Condenser |
|
| Fan Type | Centrifugal |
| Max. Air Flow - High/Mid/Low | 1390/990 CFM |
| Max. External Static Pressure | 0.5 IWG |
Compressor |
|
| Type | Hermetic Scroll |
| Output @ 230V | 2.3 kW |
Refrigerant |
|
| Type | R-410A |
Dimensions |
|
| W x D x H | 31 x 55 x 53 in |
Weight |
|
| Net / Shipping | 454 / 570 lb |
Power Cord |
|
| Gauge | 12 AWG (3-Core) |
| Length | 6 ft |
Condensate Tank |
|
| Capacity | 2 @ 5 gal |
Operating Conditions |
|
| Min. - Max. @ 50% RH | 65° - 95°F |
Max. Duct Length |
|
| Per Cold Duct Hose | 40 ft |
| Hot Duct Hose | 60 ft |
Max. Sound Level |
|
| With Condenser Duct - High/Mid/Low | 68/67/66 dB(A) |
| Without Condenser Duct - High/Mid/Low | 70/69/68 dB(A) |
*Specification information shown with 230 V. |
|
Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. |  |
Climate Pro K36e Specifications
Electronic Features |
|
| Control Panel | Programmable |
Cooling Capacity |
|
| Rating Conditions: 95°F @ 60% RH | 36,000 Btu/h* |
Energy Efficiency Rating (EER) |
|
| Ratio | 8.8* |
Electrical Characteristics |
|
| Voltage Requirement (60 Hz) | 1 Phase, 208/230 V |
| Total Power Consumption | 4.1 kW* |
| Current Consumption | 18.4 amps* |
| Recommended Fuse Size | 30 amps |
| NEMA Plug Configuration | 6-30P |
| Min. - Max. Voltage | 198 - 253 V |
Fans Motor Output |
|
| Evaporator | 0.23 kW |
| Condenser | 0.37 kW |
Evaporator |
|
| Fan Type | Centrifugal |
| Max. Air Flow - High/Mid/Low | 920 / 880 / 840 CFM* |
| Max. External Static Pressure | 0.5 IWG |
Condenser |
|
| Fan Type | Centrifugal |
| Max. Air Flow - High/Mid/Low | 1390 / 990 CFM* |
| Max. External Static Pressure | 0.5 IWG |
Compressor |
|
| Type | Hermetic Scroll |
| Output | 2.3 kW |
Refrigerant |
|
| Type | R-32 |
| Amount | 2.38 lb |
Dimensions |
|
| W x D x H | 31 x 55 x 53 in |
Weight |
|
| Net / Shipping | 574 / 666 lb |
Power Cord |
|
| Gauge | 12 AWG (3-core) |
| Length | 6 ft |
Condensate Tank |
|
| Capacity (approx.) | 2 @ 5 gal |
Operating Conditions |
|
| Min. - Max. @ 50% RH | 65° - 95°F |
Max. Duct Length |
|
| Per Cold Duct Hose | 40 ft |
| Hot Duct Hose | 60 ft |
Max. Sound Level |
|
| With Condenser Duct - High/Mid/Low | 70 / 69 / 68 dB(A) |
| Without Condenser Duct - High/Mid/Low | 70 / 69 / 68 dB(A) |
*Specification information shown with 230 V. |
|
Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. | |
Images/Videos |
Callout No. |
Part No. |
Item |
Description |
|---|---|---|---|---|
1 |
481170-0460 |
Supply Air Flange Kit, 6-in dia. |
6-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts. |
|
1A |
481170-0470 |
Supply Air Flange Kit, 8-in dia. |
8-in diameter white metal flange with wire clamp and mounting screws. Use with Self-Supported Duct. |
|
1B |
481170-0490 |
Supply Air Flange Kit, 6-in dia., Quick Connect type |
6-in diameter white metal flange with wire clamp and mounting screws. Quick Connect Type. Use with Nozzle Kit. |
|
2 |
484209-0490 |
Nozzle Kit, 6-in dia. |
6-in diameter plastic nozzle that extends up to 2 feet in length. Quick connect type. Includes trim ring. |
|
4 |
LA481744-0400 |
Self-Supported Duct, 6-in dia. Gray |
6-in adjustable diameter, gray plastic duct that extends from 6.5 to 10 feet in length. |
|
4A |
LA481744-0430 |
Self-Supported Duct, 8-in dia., Gray |
8-in adjustable diameter, gray plastic duct that extends from 6.5 to 10 feet in length. |
|
4B |
LAY45810-0030 |
Flexible Air Duct, 8-in dia. |
8-in diameter wire-reinforced, accordion-style duct in 25-ft lengths. Includes clamp. |
|
5 |
481851-0210 |
Trim Ring, 6-in dia. |
6-in diameter black plastic ring mounts as end caps for extension duct. |
|
6 |
481769-0290 |
Supply Air Nozzle Adapter Kit, 6-in dia. |
Adapter converts airflow from louvers to nozzles or air ducts. Up to four nozzles or air ducts. |
|
6A |
481769-0300 |
Duct Adapter Kit, 8-in dia. |
Two-piece metal frame converts airflow from louvers to 8-in self-supported ducts or flexible air ducts. (Ducts and flange sold separately) |
|
8A |
LAY45820-0010 |
Flexible Air Duct, 16-in dia. (not shown) |
16-in diameter wire-reinforced, accordion-style duct in 25-ft lengths. Includes clamp. |
|
9A |
484490-1040 |
Celling Tile Kit, 16-in hole, metal |
24-in x 24-in sheet metal tile with 16-in hole and built-in flange for exhaust air flexible duct kit |
|
10 |
484350-1460 |
Outdoor Heat Exchanger Plenum |
Black plastic plenum for return air to condenser. Hinged for filter cleaning. |
|

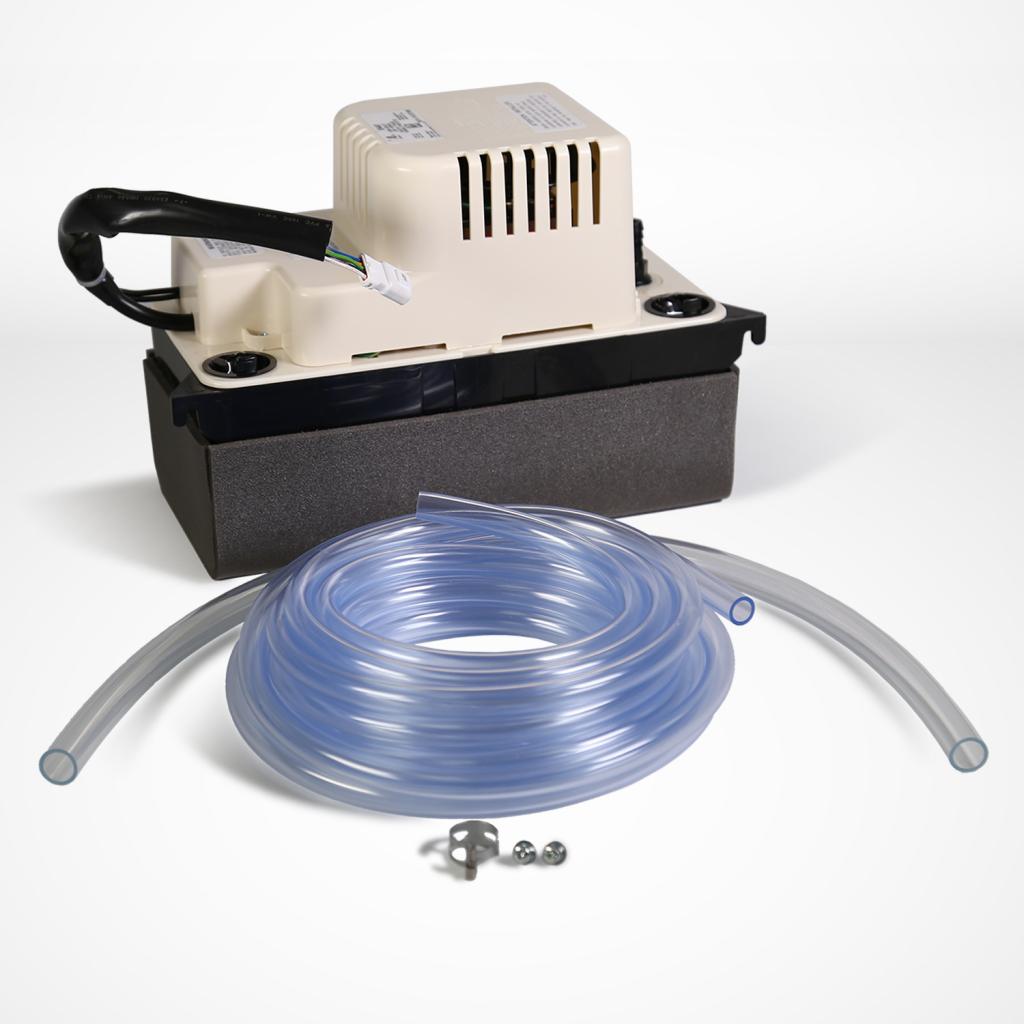

11 |
484789-0240 |
Condensate Pump Kit, 230V |
230V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 17 feet |
|
12 |
484350-1330 |
Indoor Heat Exchanger Plenum |
Black plastic plenum for return air to evaporator. |
|
14 |
484730-0020 |
Condensate Tank |
Drain tank storage for condensation (comes standard on CPK36). Requires condensate float (comes standard on CPK36). |
|
15 |
LA484420-0850 |
Storage Cover |
Durable black nylon oxford unit storage cover. Dimensions: 31-3/8 x 47-1/2 x 44-1/2 in |
|
25 |
484432-0330 |
Hose, Drain |
- |
Accessory Applications

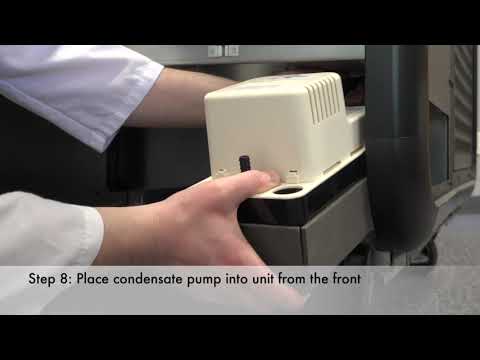

Auto Condensate Removal
Why bother with emptying the drain tank when you can install a condensate pump to remove the water automatically? This pump has a 17-ft lift capacity to reach virtually any remote drain. (Use of condensate tanks also requires the float).
# | Accessory | Climate Pro K36 | Climate Pro K60 / K63 |
|---|---|---|---|
11 | Condensate Pump Kit | 484789-0240 | Included |
14 | Condensate Tank | Included | 484730-0020 |
14A | Condensate Float (not shown) | Included | 484460-0010 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Outdoor Heat Exchanger Exhaust Air Removal
MovinCool makes removing exhaust easy. Replace the existing ceiling tile with the MovinCool ceiling tile accessory. Place the self-supported or flexible duct on top of the unit and insert it into the ceiling tile (8A and 9A required).
# | Accessory | Climate Pro K36 / K60 / K63 |
|---|---|---|
8A | Flexible Air Duct (not shown) | LAY45820-0010 |
9A | Ceiling Tile, metal (not shown) | 484490-1040 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Outdoor Heat Exchanger Air Intake
When balanced airflow is required, attach the outdoor heat exchanger plenum with a duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative air pressure. (8A, 9A and 10 required).
# | Accessory | Climate Pro K36 | Climate Pro K60 / K63 |
|---|---|---|---|
8A | Flexible Air Duct, 16-in dia. (not shown) | LAY45820-0010 | LAY45820-0010 |
9A | Ceiling Tile, metal (not shown) | 484490-1040 | 484490-1040 |
10 | Outdoor Heat Exchanger Plenum | 484350-1230 | 484350-1240 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Spot or Remote Cooling
To use the Climate Pro® K Series models to spot cool specific areas, use the nozzle adapter in place of the standard louvers. Attach self-supported or flexible air ducts to the adapter to cool remote hot spots. Trim rings give a finished look and keep the ducts from unraveling. To improve efficiency, use the outdoor heat exchanger plenum to recirculate cool air.
# | Accessory | Climate Pro K36 | Climate Pro K60 / K63 |
|---|---|---|---|
1 | Supply Air Flange Kit, 6-in dia. (a) | 481170-0460 | 481170-0460 |
1A | Supply Air Flange Kit, 8-in dia.(b) | 481170-0470 | 481170-0470 |
1B | Quick Connect Supply Air Flange Kit, 6-in dia. (c) | 481170-0490 | 481170-0490 |
2 | Quick Connect Supply Air Nozzle Kit, 6-in dia. (d) | 484209-0490 | 484209-0490 |
4 | Self-Supported Duct, 6-in dia. (e) | LA481744-0400 | LA481744-0400 |
4A | Self-Supported Duct, 8-in dia. (f) | LA481744-0430 | LA481744-0430 |
4B | Flexible Air Duct, 8-in dia.(f) | LAY45810-0030 | LAY45810-0030 |
5 | Trim Ring (g) | 481851-0210 | 481851-0210 |
6 | Supply Air Nozzle Adapter Kit, 6-in (h) | 481769-0290 | 481769-0290 |
6A | Duct Adapter Kit, 8-in dia. (i) | 481769-0300 | 481769-0300 |
8A | Flexible Air Duct (not shown) (j) | LAY45820-0010 | LAY45820-0010 |
12 | Indoor Heat Exchanger Plenum (k) | 484350-1330 | 484350-1210 |
REQUIRED ACCESSORIES: (a) 4, 5, and 6; (b) (4A and 6A) or (4B and 6A); (c) 2 and 6; (d) 1B and 6; (e) 1 , 5, and 6; (f) 1A and 6A; (g) 4; (h) (1B and 2) or (1, 4, and 5); (i) (1A and 4A) or (1A and 4B); (j) 12; (k) 8A.
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Unit Storage
This durable unit cover is perfect for storage and transportation on an open truck. Made of black nylon oxford fabric, this cover is waterproof and mildew- and UV-treated for lasting service.
# | Accessory | Climate Pro K36 | Climate Pro K60 / K63 |
|---|---|---|---|
15 | Storage Cover | LA484420-0850 | LA484420-0860 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
