Climate Pro X26
Two tons of portable spot cooling for industrial and warehouse spaces.
The Climate Pro X26 puts 24,000 Btu/h of reliable cooling with a space-saving footprint of 4.4 sq. ft. It provides fast and effective temperature control — keeping people and processes on track for uninterrupted productivity.
- Modest power usage. Runs on 208/230V 20 amp circuit and consumes 2.7 kW.
- Temperature control in conditions from 70° to 113°F.
24,000 Btu/h
Cooling Capacity
1 Phase, 208/230V
Voltage
Find your local MovinCool dealer
Find a Dealer
Climate Pro X26 Features
Features that make MovinCool a "best value."
The Climate Pro X26 features advances that distinguish the entire Climate Pro Series — added assurances of safety and ease of operation.
See the features that distinguish the entire Climate Pro Series.
Advanced features include:
-
Programmable electronics for automatic cycling after hours and on weekends.
-
Wireless connectivity-ready for remote monitoring and e-notifications.
-
Quick-connect nozzle for time-saving setup.
Moderately quiet, reliable operation.
Moderately quiet. At the highest speed with condenser duct, sound level is 66 dB(A).
Electronic Features |
|
| Control Panel | Programmable |
Cooling Capacity |
|
| Rating Conditions: 95°F @ 60% RH | 24,000 Btu/h |
Electrical Characteristics |
|
| Voltage Requirement (60 Hz) | 1 Phase, 208/230 V |
| Total Power Consumption | 2.7 kW* |
| Current Consumption | 12.8 amps* |
| Recommended Fuse Size | 20 amps |
| NEMA Plug Configuration | 6-20P |
| Min. - Max. Voltage | 198 - 253 V |
Fans |
|
| Motor Output | 0.56 kW |
Evaporator |
|
| Fan Type | Centrifugal |
| Max. Air Flow - High/Mid/Low | 700/650/595 CFM |
| Max External Static Pressure | 0.42 IWG |
Condenser |
|
| Fan Type | Centrifugal |
| Max Air Flow - High/Mid/Low | 1475/1370/1260 CFM |
| Max. External Static Pressure | 0.25 IWG |
Compressor |
|
| Type | Hermetic Rotary |
| Output | 1.5 kW |
Refrigerant |
|
| Type | R-410A |
Dimensions |
|
| W x D x H | 22 x 29 x 51 in |
Weight |
|
| Net / Shipping | 216 / 292 lb |
Power Cord |
|
| Gauge | 12 AWG (3-core) |
| Length | 6 ft |
Condensate Tank |
|
| Capacity | 5 gal |
Operating Conditions |
|
| Min. - Max. @ 50% RH | 70° - 113°F |
Max. Duct Length |
|
| Per Cold Duct Hose | 60 ft |
| Hot Duct Hose | 45 ft |
Max. Sound Level |
|
| With Condenser Duct - High/Mid/Low | 66/65/64 dB(A) |
| Without Condenser Duct - High/Mid/Low | 69/68/67 dB(A) |
*Specification information shown with 230 V. |
|
Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. |  |
Accessory Applications
Auto Condensate Removal
Why bother with emptying the drain tank when you can install a condensate pump to remove the water automatically? This pump has a 17-ft lift capacity to reach virtually any remote drain. With the condensate pump installed, drainage is automatic and access to the compartment is no longer necessary.
# | Accessory | Climate Pro X14 / X20 | Climate Pro X26 |
|---|---|---|---|
11 | Condensate Pump Kit | 484789-0210 | 484789-0220 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Outdoor Heat Exchanger Exhaust Air Removal
To exhaust air above the work area, attach duct to the exhaust air flange on top of the unit. When using MovinCool inside an office, simply replace the ceiling tile with the MovinCool ceiling tile and insert the duct to exhaust the air. No special tools or equipment are required for the installation.
# | Accessory | Climate Pro X14 / X20 | Climate Pro X26 |
|---|---|---|---|
8 | Self Supported Duct, 12-in dia.(a) | LA481744-0410 | LA481744-0410 |
8A | Flexible Air Duct (not shown) (b) | LAY45771-0060 | LAY45771-0060 |
9 | Ceiling Tile, plastic (c) | LA146373-8280 | LA146373-8280 |
9A | Ceiling Tile, metal (not shown) (d) | 484490-1030 | 484490-1030 |
REQUIRED ACCESSORIES: (a) 9; (b) 9A; (c) 8; (d) 8A.
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Outdoor Heat Exchanger Air Intake
When balanced airflow is required, attach the outdoor heat exchanger plenum with a duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative air pressure.
# | Accessory | Climate Pro X14 / X20 | Climate Pro X26 |
|---|---|---|---|
8 | Self Supported Duct, 12-in dia. (e) | LA481744-0410 | LA481744-0410 |
8A | Flexible Air Duct (f) | LAY45771-0060 | LAY45771-0060 |
9 | Ceiling Tile, plastic (g) | LA146373-8280 | LA146373-8280 |
9A | Ceiling Tile, metal (h) | 484490-1030 | 484490-1030 |
10 | Outdoor Heat Exchanger Plenum (i) | 484350-1430 | 484350-1180 |
REQUIRED ACCESSORIES: (e) 9 and 10; (f) 9A and 10; (g) 8 and 10; (h) 8A and 10; (i) (8 and 9) or (8A and 9A).
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Remote Cooling

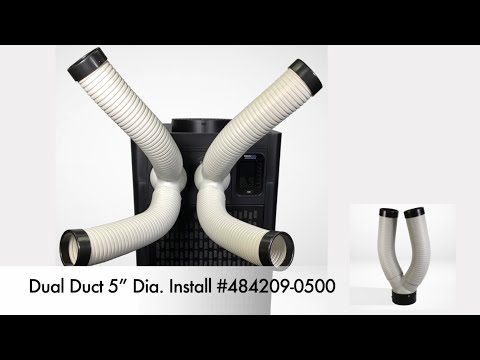

The amount of air supplied to remote areas can be increased by attaching 10-ft extension ducts. Use the flange and clamp to secure the extension ducts to the unit. Each duct can be extended 30 to 60 feet from the unit, depending on the model. Add trim rings to the end of the extension ducts to give a finished look and keep the ducts from unraveling. The dual duct accessory can be used to divide each 5-in nozzle opening into two 4-in outlets to multiply your cooling options.
# | Accessory | Climate Pro X14 | Climate Pro X20 / X26 |
|---|---|---|---|
1 | Supply Air Flange Kit (j) | 481170-0450 | 481170-0450 |
3 | Dual Duct | 484209-0500 | 484209-0500 |
4 | Self-Supported Duct, 5-in dia. (k) | LA481744-0420 | LA481744-0420 |
5 | Trim Ring (l) | 481851-0200 | 481851-0200 |
6 | Supply Air Nozzle Adapter Kit (m) | 481769-0310 | 481769-0310 |
12 | Indoor Heat Exchanger Plenum (o) | 484350-1190 | 484350-1200 |
REQUIRED ACCESSORIES: (j) 4, 5, and 6; (k) 1, 5, and 6; (l) 4; (m) 1, 4, and 5; (o) 8 or 8A.
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
Unit Storage
This durable unit cover is perfect for storage and transportation on an open truck. Made of black nylon oxford fabric, this cover is waterproof and mildew- and UV-treated for lasting service.
# | Accessory | Climate Pro X14 | Climate Pro X20 / X26 |
|---|---|---|---|
15 | Storage Cover | LA484420-0870 | LA484420-0880 |
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
