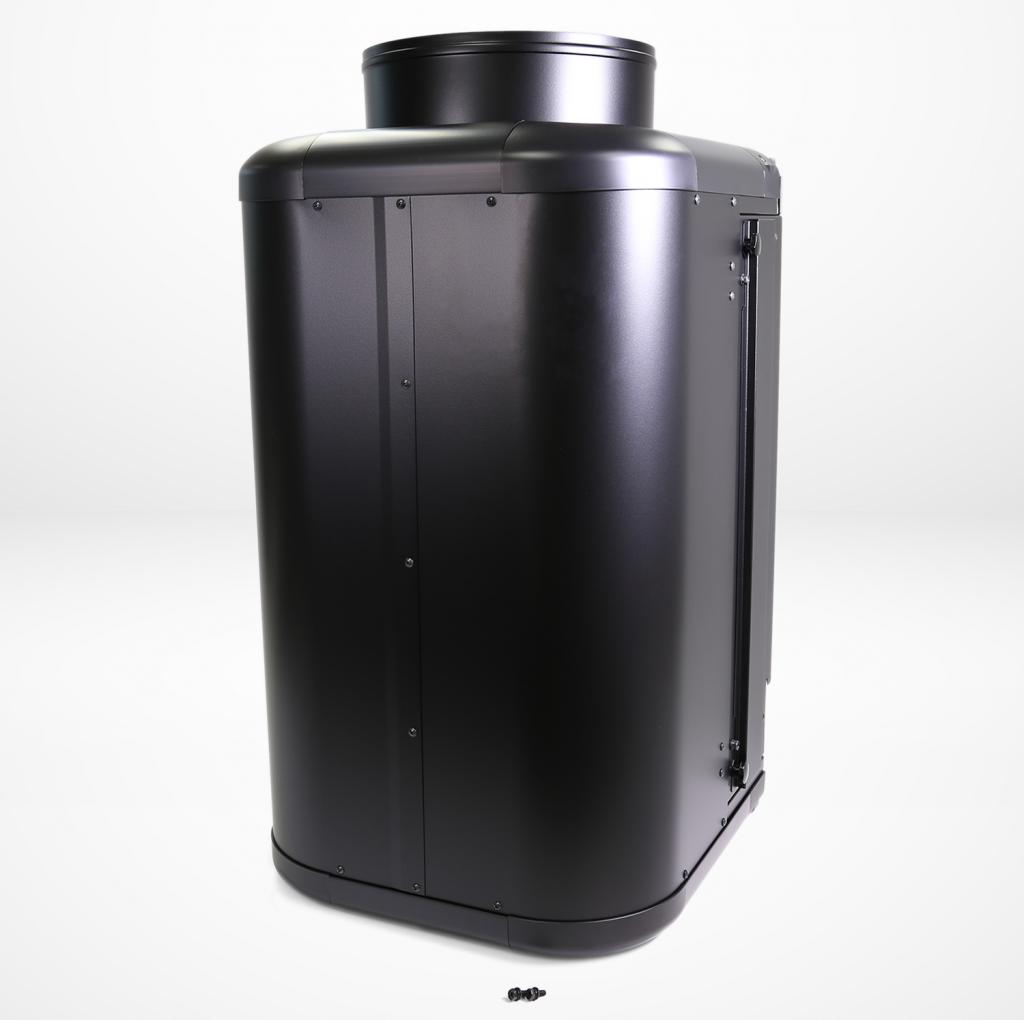

Climate Pro X14

Small but mighty spot cooling for factory and warehouse.

Taking a mere 4.4 sq. ft. of floor space, the Climate Pro X14 keeps people comfortable and productive with 13,200 Btu/h of cooling.

  • Frugal with power. Runs on 115V with 15 amp circuit — uses just 1.3 kW.
  • Extensive cooling reach.
  • Provides effective temperature control in conditions from 70° to 113°F.

13,200 Btu/h

Cooling Capacity

1 Phase, 115V

Voltage

Climate Pro X14 - MovinCool

Find your local MovinCool dealer

Find a Dealer

Climate Pro X14 Features

Get the value you expect.

The Climate Pro X14 brings advances in design for safety and ease of use.

  • Programmable electronics for automatic operation after hours and on weekends.
  • Wireless connectivity-ready for remote monitoring and e-notifications of performance.
  • Quick-connect nozzle for simple, time-saving setup.
N

Roll it in. Set it up. Turn it on.

Keep your people and processes working productively with simple and efficient spot cooling.

See all the features that distinguish the Climate Pro Series.

y

Quiet, reliable operation.

Quiet operation. At highest speed with condenser duct, sound level 57 dB(A) — similar to sound levels from an electric toothbrush.


Electronic Features

Control PanelProgrammable
Thermostat ControlElectronic

Cooling Capacity

Rating Conditions: 95°F @ 60% RH13,200 Btu/h

Electrical Characteristics

Voltage Requirement1 Phase, 115 V
Total Power Consumption1.3 kW
Current Consumption11.5 amps
Recommended Fuse Size15 amps
NEMA Plug Configuration5-15P
Min. - Max. Voltage104 - 127 V

Fans

Motor Output 0.23 kW

Evaporator

Fan TypeCentrifugal
Max. Air Flow - High/Mid/Low440/410/385 CFM
Max External Static Pressure0.31 IWG

Condenser

Fan TypeCentrifugal
Max Air Flow - High/Mid/Low830/770/720 CFM
Max. External Static Pressure0.19 IWG

Compressor

TypeHermetic Rotary
Output 0.75 kW

Refrigerant

TypeR-410A

Dimensions

W x D x H22 x 29 x 48 in

Weight

Net / Shipping165 / 212 lb

Power Cord

Gauge14 AWG (3 -core)
Length10 ft

Condensate Tank

Capacity5 gal

Operating Conditions

Min. - Max. @ 50% RH70° - 113°F

Max. Duct Length

Per Cold Duct Hose30 ft
Hot Duct Hose60 ft

Max. Sound Level

With Condenser Duct - High/Mid/Low57/56/55 dB(A)
Without Condenser Duct - High/Mid/Low60/59/58 dB(A)

Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit.


Images/Videos
Callout No.
Part No.
Item
Description
1
481170-0450
Supply Air Flange Kit, 5-in dia.
5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts.
3
484209-0500

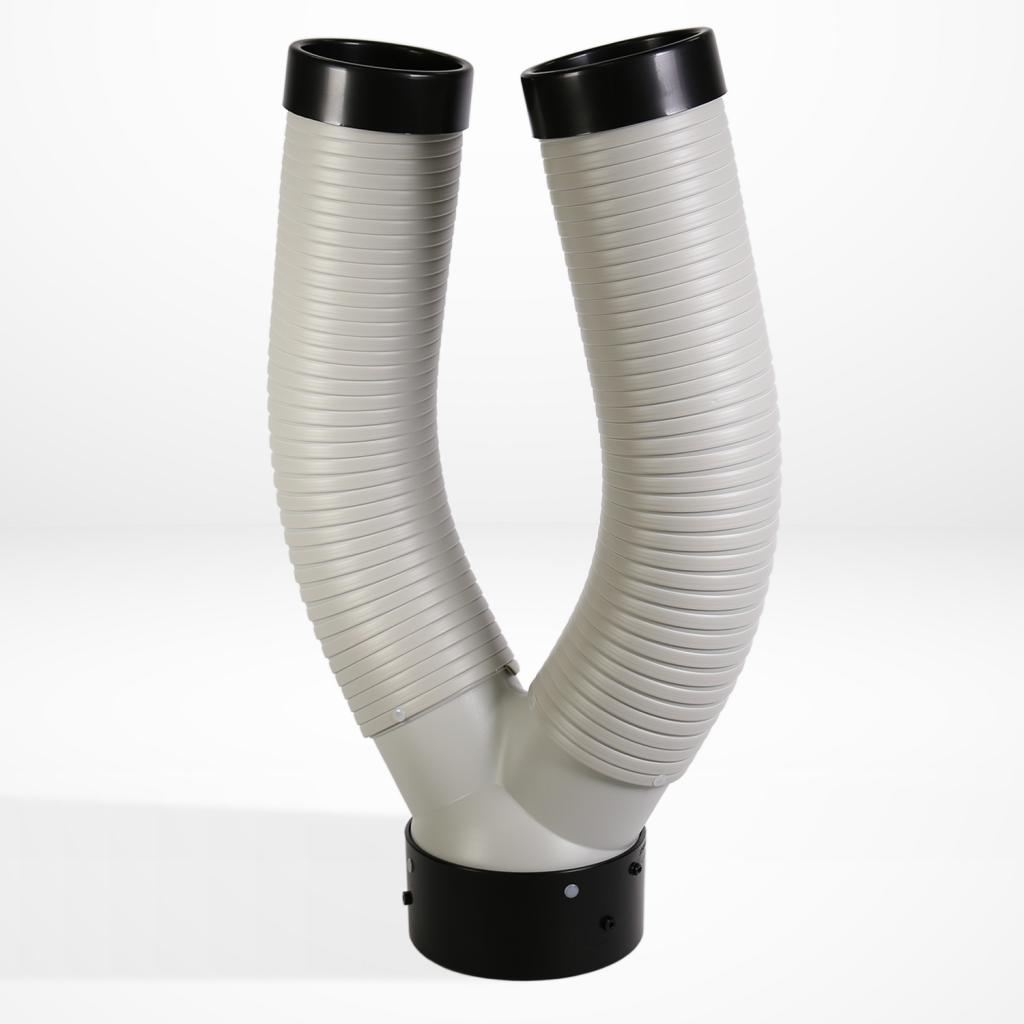

Dual Duct, 5-in dia.
5-in diameter white plastic flange with two 4-in nozzles that extend to 2 feet in length.
4
LA481744-0420
Self-Supported Duct, 5-in dia.
5-in diameter, gray plastic duct that extends from 6.5 to 10 feet in length.
5
481851-0200
Trim Ring, 5-in dia.
5-in diameter black plastic ring mounts as end caps for extension duct.
6
481769-0310
Supply Air Nozzle Adapter Kit, 5-in dia.
Adapter converts airflow to air ducts.
8
LA481744-0410
Self-Supported Duct, 12-in dia.
12-in diameter plastic duct that extends 6.5 to 10 feet in length
8A
LAY45771-0060
Flexible Air Duct, 12-in dia. (not shown)
12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp.
9
LA146373-8280
Celling Tile Kit, 12-in hole, plastic
24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct.

9A
484490-1030
Ceiling Tile, 12-in hole, metal
24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit
10
484350-1430
Outdoor Heat Exchanger Plenum
Plastic plenum for return air to condenser. Hinged for filter cleaning.
11
484789-0210
Condensate Pump Kit, 115V
115V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 20 feet at 115V
15
LA484420-0870
Storage Cover
Durable black nylon oxford unit storage cover. Dimensions: 22-3/4 x 29-3/4 x 42-3/4 in


Accessory Applications

Auto Condensate Removal

Why bother with emptying the drain tank when you can install a condensate pump to remove the water automatically? This pump has a 17-ft lift capacity to reach virtually any remote drain. With the condensate pump installed, drainage is automatic and access to the compartment is no longer necessary.

#
Accessory
Climate Pro X14 / X20
Climate Pro X26
11
Condensate Pump Kit
484789-0210
484789-0220

NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

Outdoor Heat Exchanger Exhaust Air Removal

To exhaust air above the work area, attach duct to the exhaust air flange on top of the unit. When using MovinCool inside an office, simply replace the ceiling tile with the MovinCool ceiling tile and insert the duct to exhaust the air. No special tools or equipment are required for the installation.

#
Accessory
Climate Pro X14 / X20
Climate Pro X26
8
Self Supported Duct, 12-in dia.(a)
LA481744-0410
LA481744-0410
8A
Flexible Air Duct (not shown) (b)
LAY45771-0060
LAY45771-0060
9
Ceiling Tile, plastic (c)
LA146373-8280
LA146373-8280
9A
Ceiling Tile, metal (not shown) (d)
484490-1030
484490-1030

REQUIRED ACCESSORIES: (a) 9; (b) 9A; (c) 8; (d) 8A.
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

Outdoor Heat Exchanger Air Intake

When balanced airflow is required, attach the outdoor heat exchanger plenum with a duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative air pressure.

#
Accessory
Climate Pro X14 / X20
Climate Pro X26
8
Self Supported Duct, 12-in dia. (e)
LA481744-0410
LA481744-0410
8A
Flexible Air Duct (f)
LAY45771-0060
LAY45771-0060
9
Ceiling Tile, plastic (g)
LA146373-8280
LA146373-8280
9A
Ceiling Tile, metal (h)
484490-1030
484490-1030
10
Outdoor Heat Exchanger Plenum (i)
484350-1430
484350-1180

REQUIRED ACCESSORIES: (e) 9 and 10; (f) 9A and 10; (g) 8 and 10; (h) 8A and 10; (i) (8 and 9) or (8A and 9A).
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

Remote Cooling

The amount of air supplied to remote areas can be increased by attaching 10-ft extension ducts. Use the flange and clamp to secure the extension ducts to the unit. Each duct can be extended 30 to 60 feet from the unit, depending on the model. Add trim rings to the end of the extension ducts to give a finished look and keep the ducts from unraveling. The dual duct accessory can be used to divide each 5-in nozzle opening into two 4-in outlets to multiply your cooling options.

#
Accessory
Climate Pro X14
Climate Pro X20 / X26
1
Supply Air Flange Kit (j)
481170-0450
481170-0450
3
Dual Duct
484209-0500
484209-0500
4
Self-Supported Duct, 5-in dia. (k)
LA481744-0420
LA481744-0420
5
Trim Ring (l)
481851-0200
481851-0200
6
Supply Air Nozzle Adapter Kit (m)
481769-0310
481769-0310
12
Indoor Heat Exchanger Plenum (o)
484350-1190
484350-1200

REQUIRED ACCESSORIES: (j) 4, 5, and 6; (k) 1, 5, and 6; (l) 4; (m) 1, 4, and 5; (o) 8 or 8A.
NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

Unit Storage

This durable unit cover is perfect for storage and transportation on an open truck. Made of black nylon oxford fabric, this cover is waterproof and mildew- and UV-treated for lasting service.

#
Accessory
Climate Pro X14
Climate Pro X20 / X26
15
Storage Cover
LA484420-0870
LA484420-0880

NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
