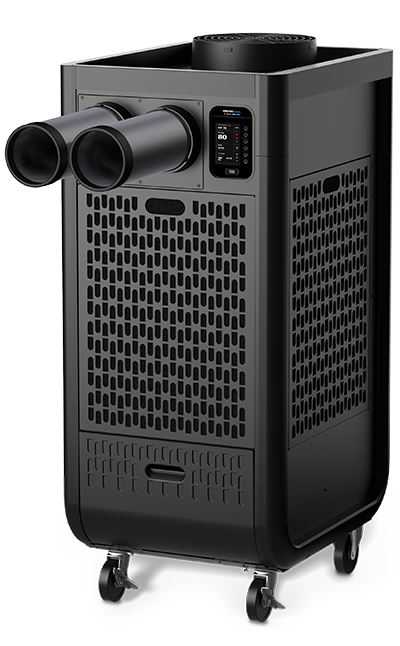

Climate Pro X20

Compact spot cooling.

The Climate Pro X20 delivers 16,800 Btu/h of cooling relief with a footprint under 5 sq. ft. It’s ideal for keeping people and processes productive in hot and humid conditions.

  • Small power requirement. Runs on 115V with 20 amp circuit — consumes just 1.7 kW.
  • Effective cooling relief in conditions from 70° to 113°F.

16,800 Btu/h

Cooling Capacity

1 Phase, 115V

Voltage

Climate Pro X20 - MovinCool

Find your local MovinCool dealer

Find a Dealer

Climate Pro X20 Features

Features that make MovinCool systems a "best value."

The Climate Pro X20 brings advances that distinguish the entire Climate Pro Series—added assurances of safety and ease of operation.

See all the features that distinguish the entire Climate Pro Series.

    Advanced features include:

    • Programmable electronics for automatic operation after hours and on weekends.

    • Wireless connectivity-ready for remote monitoring and e-notifications of performance.

    • Quick-connect nozzle for easy, time-saving setup.

    y

    Quiet, reliable operation.

    Quiet operation. At highest speed with condenser duct, sound level is 64 dB(A) — similar to levels of a conversation with friends.


    Electronic Features

    Control PanelProgrammable
    Thermostat ControlElectronic

    Cooling Capacity

    Rating Conditions: 95°F @ 60% RH16,800 Btu/h

    Electrical Characteristics

    Voltage Requirement1 Phase, 115 V
    Total Power Consumption1.7 kW
    Current Consumption15.5 amps
    Recommended Fuse Size20 amps
    NEMA Plug Configuration5-20P
    Min. - Max. Voltage104 - 127 V

    Fans

    Motor Output 0.37 kW

    Evaporator

    Fan TypeCentrifugal
    Max. Air Flow - High/Mid/Low565/525/475 CFM
    Max External Static Pressure0.31 IWG

    Condenser

    Fan TypeCentrifugal
    Max Air Flow - High/Mid/Low890/835/760 CFM
    Max. External Static Pressure0.23 IWG

    Compressor

    TypeHermetic Rotary
    Output 0.9 kW

    Refrigerant

    TypeR-410A

    Dimensions

    W x D x H22 x 29 x 51 in

    Weight

    Net / Shipping195 / 237 lb

    Power Cord

    Gauge12 AWG (3-core)
    Length10 ft

    Condensate Tank

    Capacity5 gal

    Operating Conditions

    Min. - Max. @ 50% RH70° - 113°F

    Max. Duct Length

    Per Cold Duct Hose30 ft
    Hot Duct Hose60 ft

    Max. Sound Level

    With Condenser Duct - High/Mid/Low64/63/62 dB(A)
    Without Condenser Duct - High/Mid/Low67/66/65 dB(A)

    Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit.


    Images/Videos
    Callout No.
    Part No.
    Item
    Description
    1
    481170-0450
    Supply Air Flange Kit, 5-in dia.
    5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts.
    3
    484209-0500
    Dual Duct, 5-in dia.
    5-in diameter white plastic flange with two 4-in nozzles that extend to 2 feet in length.
    4
    LA481744-0420
    Self-Supported Duct, 5-in dia.
    5-in diameter, gray plastic duct that extends from 6.5 to 10 feet in length.
    5
    481851-0200
    Trim Ring, 5-in dia.
    5-in diameter black plastic ring mounts as end caps for extension duct.
    6
    481769-0310
    Supply Air Nozzle Adapter Kit, 5-in dia.
    Adapter converts airflow to air ducts.
    8
    LA481744-0410
    Self-Supported Duct, 12-in dia.
    12-in diameter plastic duct that extends 6.5 to 10 feet in length
    8A
    LAY45771-0060
    Flexible Air Duct, 12-in dia. (not shown)
    12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp.
    9
    LA146373-8280
    Celling Tile Kit, 12-in hole, plastic
    24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct.

    9A
    484490-1030
    Ceiling Tile, 12-in hole, metal
    24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit
    10
    484350-1430
    Outdoor Heat Exchanger Plenum
    Plastic plenum for return air to condenser. Hinged for filter cleaning.
    11
    484789-0210
    Condensate Pump Kit, 115V
    115V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 20 feet at 115V
    15
    LA484420-0880
    Storage Cover
    Durable black nylon oxford unit storage cover. Dimensions: 22.75 x 29.75 x 45.875 in

    Accessory Applications

    Auto Condensate Removal

    Why bother with emptying the drain tank when you can install a condensate pump to remove the water automatically? This pump has a 17-ft lift capacity to reach virtually any remote drain. With the condensate pump installed, drainage is automatic and access to the compartment is no longer necessary.

    #
    Accessory
    Climate Pro X14 / X20
    Climate Pro X26
    11
    Condensate Pump Kit
    484789-0210
    484789-0220

    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Outdoor Heat Exchanger Exhaust Air Removal

    To exhaust air above the work area, attach duct to the exhaust air flange on top of the unit. When using MovinCool inside an office, simply replace the ceiling tile with the MovinCool ceiling tile and insert the duct to exhaust the air. No special tools or equipment are required for the installation.

    #
    Accessory
    Climate Pro X14 / X20
    Climate Pro X26
    8
    Self Supported Duct, 12-in dia.(a)
    LA481744-0410
    LA481744-0410
    8A
    Flexible Air Duct (not shown) (b)
    LAY45771-0060
    LAY45771-0060
    9
    Ceiling Tile, plastic (c)
    LA146373-8280
    LA146373-8280
    9A
    Ceiling Tile, metal (not shown) (d)
    484490-1030
    484490-1030

    REQUIRED ACCESSORIES: (a) 9; (b) 9A; (c) 8; (d) 8A.
    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Outdoor Heat Exchanger Air Intake

    When balanced airflow is required, attach the outdoor heat exchanger plenum with a duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative air pressure.

    #
    Accessory
    Climate Pro X14 / X20
    Climate Pro X26
    8
    Self Supported Duct, 12-in dia. (e)
    LA481744-0410
    LA481744-0410
    8A
    Flexible Air Duct (f)
    LAY45771-0060
    LAY45771-0060
    9
    Ceiling Tile, plastic (g)
    LA146373-8280
    LA146373-8280
    9A
    Ceiling Tile, metal (h)
    484490-1030
    484490-1030
    10
    Outdoor Heat Exchanger Plenum (i)
    484350-1430
    484350-1180

    REQUIRED ACCESSORIES: (e) 9 and 10; (f) 9A and 10; (g) 8 and 10; (h) 8A and 10; (i) (8 and 9) or (8A and 9A).
    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Remote Cooling

    The amount of air supplied to remote areas can be increased by attaching 10-ft extension ducts. Use the flange and clamp to secure the extension ducts to the unit. Each duct can be extended 30 to 60 feet from the unit, depending on the model. Add trim rings to the end of the extension ducts to give a finished look and keep the ducts from unraveling. The dual duct accessory can be used to divide each 5-in nozzle opening into two 4-in outlets to multiply your cooling options.

    #
    Accessory
    Climate Pro X14
    Climate Pro X20 / X26
    1
    Supply Air Flange Kit (j)
    481170-0450
    481170-0450
    3
    Dual Duct
    484209-0500
    484209-0500
    4
    Self-Supported Duct, 5-in dia. (k)
    LA481744-0420
    LA481744-0420
    5
    Trim Ring (l)
    481851-0200
    481851-0200
    6
    Supply Air Nozzle Adapter Kit (m)
    481769-0310
    481769-0310
    12
    Indoor Heat Exchanger Plenum (o)
    484350-1190
    484350-1200

    REQUIRED ACCESSORIES: (j) 4, 5, and 6; (k) 1, 5, and 6; (l) 4; (m) 1, 4, and 5; (o) 8 or 8A.
    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.

    Unit Storage

    This durable unit cover is perfect for storage and transportation on an open truck. Made of black nylon oxford fabric, this cover is waterproof and mildew- and UV-treated for lasting service.

    #
    Accessory
    Climate Pro X14
    Climate Pro X20 / X26
    15
    Storage Cover
    LA484420-0870
    LA484420-0880

    NOTE: All part numbers come with one part except where noted. All kits include additional pieces such as clamps and screws. See parts description box for more information.
